Elfa

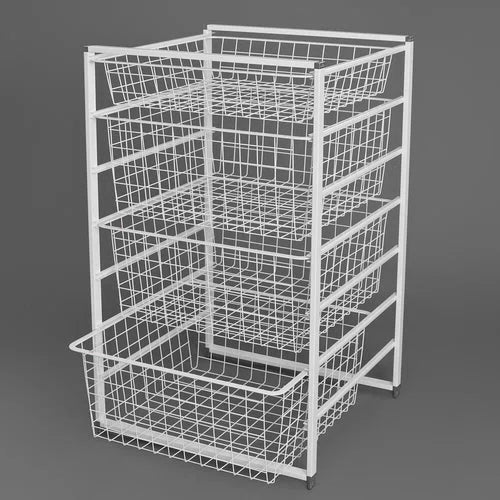

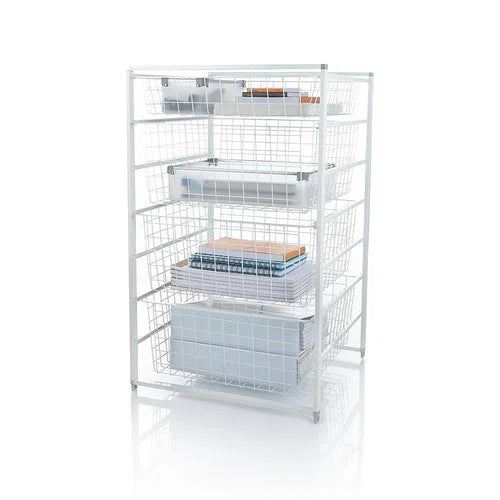

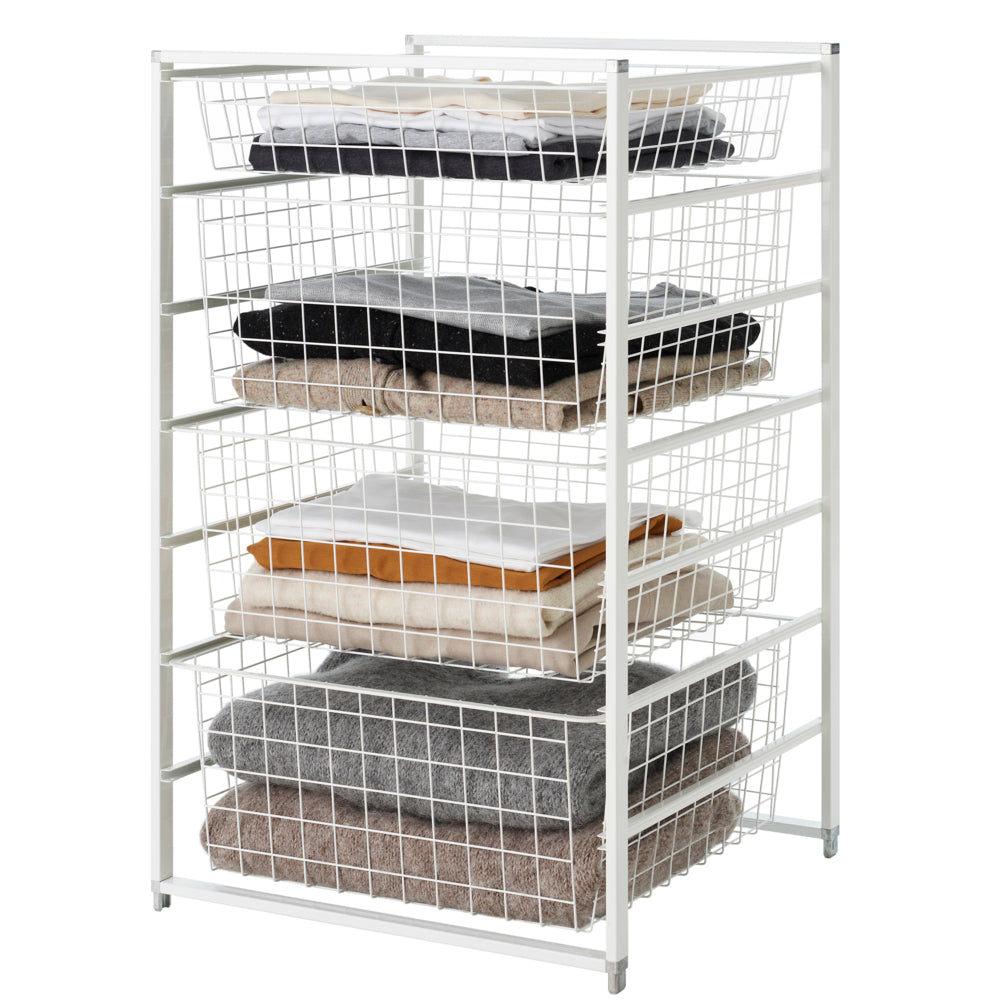

Drawer System Kit- Wire Baskets- 7 Runner-Mini Depth 45cm- Width 45cm-H: 74 white

Drawer System Kit- Wire Baskets- 7 Runner-Mini Depth 45cm- Width 45cm-H: 74 white

€143.60 EUR
€143.60 EUR
Sale Sold out
Taxes included.

Discover our drawer system kits, the ultimate and complete solution for wardrobes, laundry rooms and other spaces requiring floor-based storage. The kit includes frame sides, crossbars and drawers. Extend the drawer system's functionalities with a wide range of available accessories. Use an extension kit to stack multiple drawer systems on top of each other.

  • Complete kit with frame sides, crossbars and drawers., Suitable for spaces requiring floor-based storage., Various accessories available to enhance the functionality.
Width (mm)450
Depth (mm)435
Height740

Technical description

Complete drawer system kit that includes frame sides, crossbars and drawers. Ideal in wardrobes, laundry rooms or other places where you need floor-based storage. Various accessories available. The drawer system is a floor based system built on frames, crossbars and drawers. Can be placed in e.g. closets and laundry rooms - freestanding and on wheels. Combine drawer units and add accessories to build a storage system fitting your needs and space e.g. under a staircase. Supplement with a top shelf to create a solid work surface or an extension kit to stack multiple units. 2 metal colours: White

Planning rules

Drawer system kits come complete with frame sides, crossbars and drawers. When stacking drawer system units on top of each other, 30 mm is subtracted from the total height. For example: 440 mm (17-3/8") + 440 mm (17-3/8") = 880 mm (34-5/8") – 30 mm (1-1/8") = 850 mm (33-1/2"). Adding frame feet increases the total height by 2 mm (1/8"). Adding casters increases the total height by 77 mm (3"). Adding adjustable frame feet increases the total height by 50–63 mm (2"–2-1/2").

Assembly Instructions

You need the following to assemble: rubber hammer/mallet and something to protect the floor (carpet, piece of cardboard etc.). If you don’t have a rubber hammer/mallet, you can use a hammer with a wood block to protect the frame. Before you start: Make sure to secure that you are working on a non-sensitive surface – for example on a carpet or use a wood block or a piece of cardboard under the frames to protect the floor when hammering. Step 1: Start by turning the frame sides upside down and lining them up next to eachother. Secure that the “runners” (A), the U-shaped channels on the inside of the frames, are pointing inwards. Step 2: Fasten the crossbars with “double teeth” (B) to the frame side, using the rubber hammer/mallet. The Elfa Logo on the crossbars will read upside down in this position. Step 3: Turn the structure again. Step 4: Fasten the remaining crossbars with the “single tooth” and a flat top (C). When finished, attach casters or frame feet onto the bottom teeth (not included). When mounting a drawer system on top of another drawer system, use the crossbar extension set (see separate assembly instruction under "Extension kit"). Finally, slide in drawers.
