Elfa
Gliding Drawer Frame & Baskets- Width 45 x Depth 45
Gliding Drawer Frame & Baskets- Width 45 x Depth 45
Couldn't load pickup availability

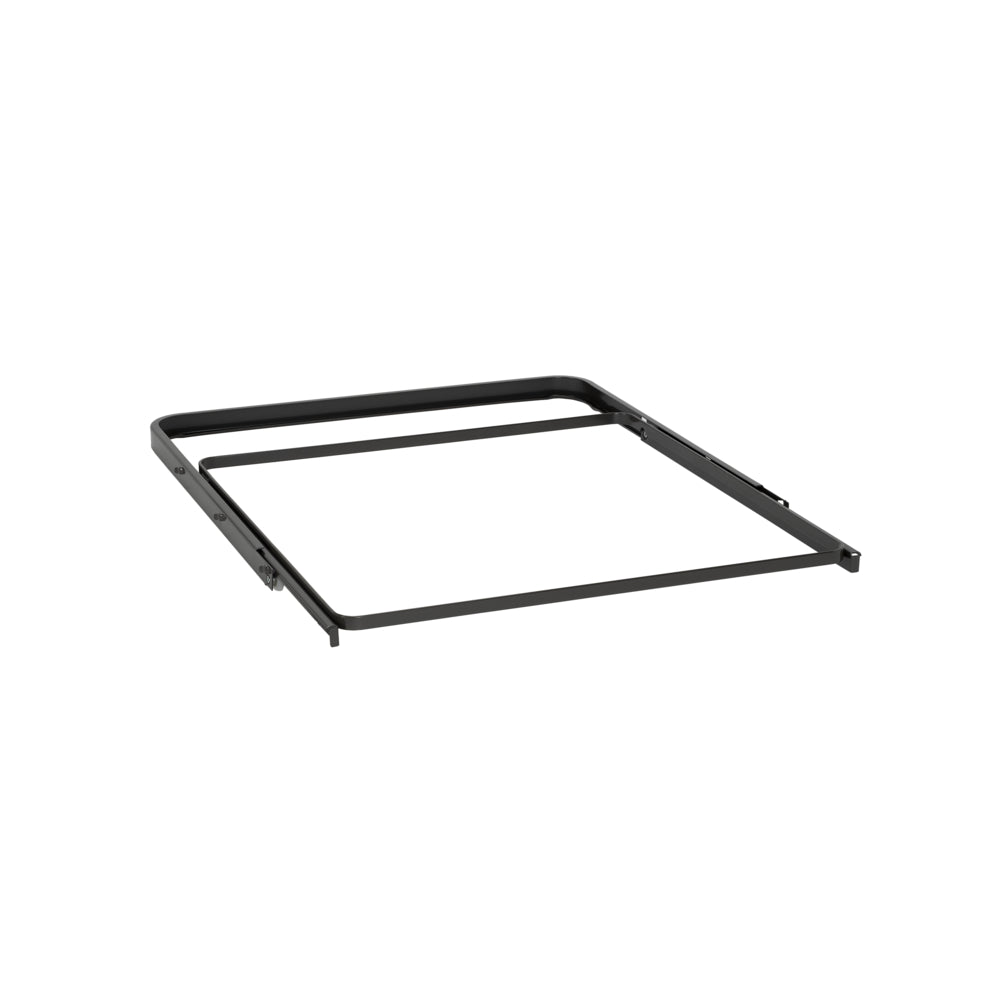

Gliding Frame:
Enjoy organized drawer storage with our gliding drawer frame. The frame installs easily and clicks securely into place between two bracket click-ins, without tools. To complete your setup, simply supplement it with a mesh- or wire drawer in corresponding width and depth.
- Integrated wheels for easy gliding and built-in stops ensure it stays put when in use.
- Securely clicks into place between two click-in brackets without the need for tools.
- Supplement the frame with a mesh- or wire drawer in corresponding width and depth.
-
Width (mm)449Depth (mm)430Height25Weight Recommendation8 kg

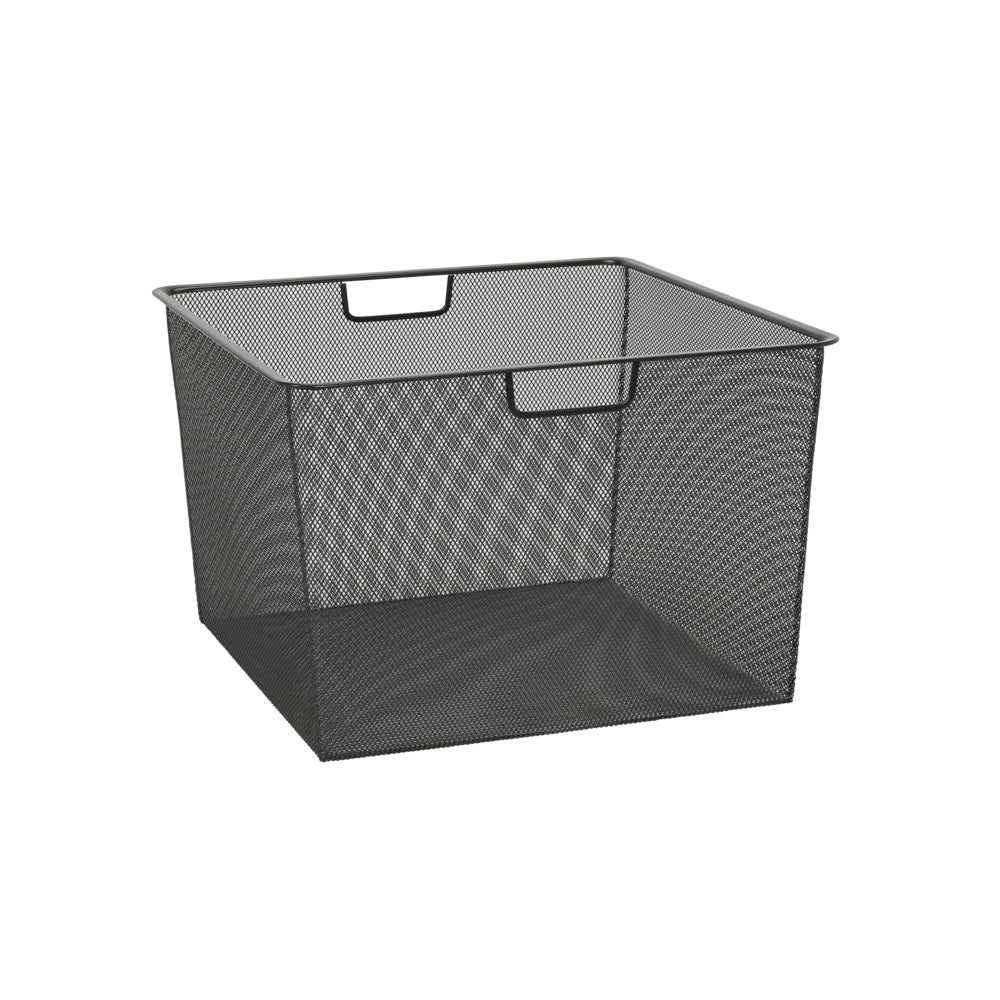

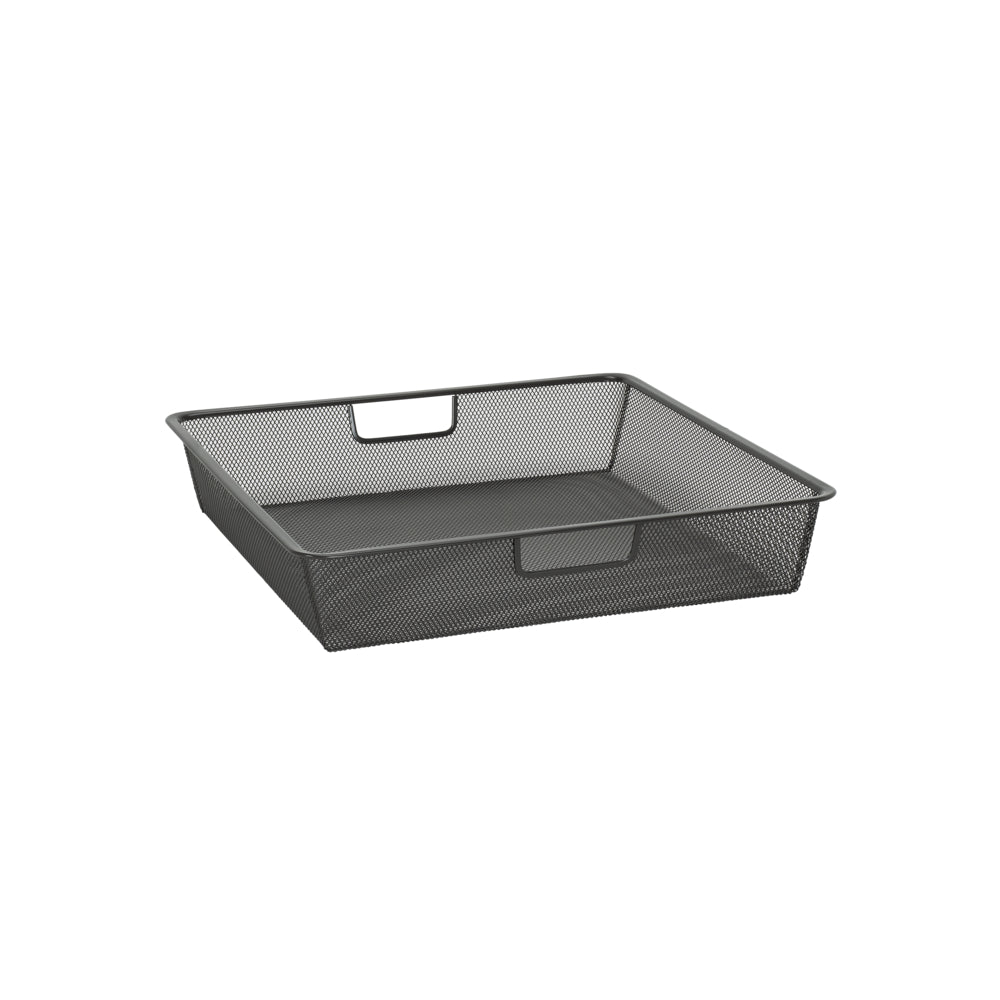

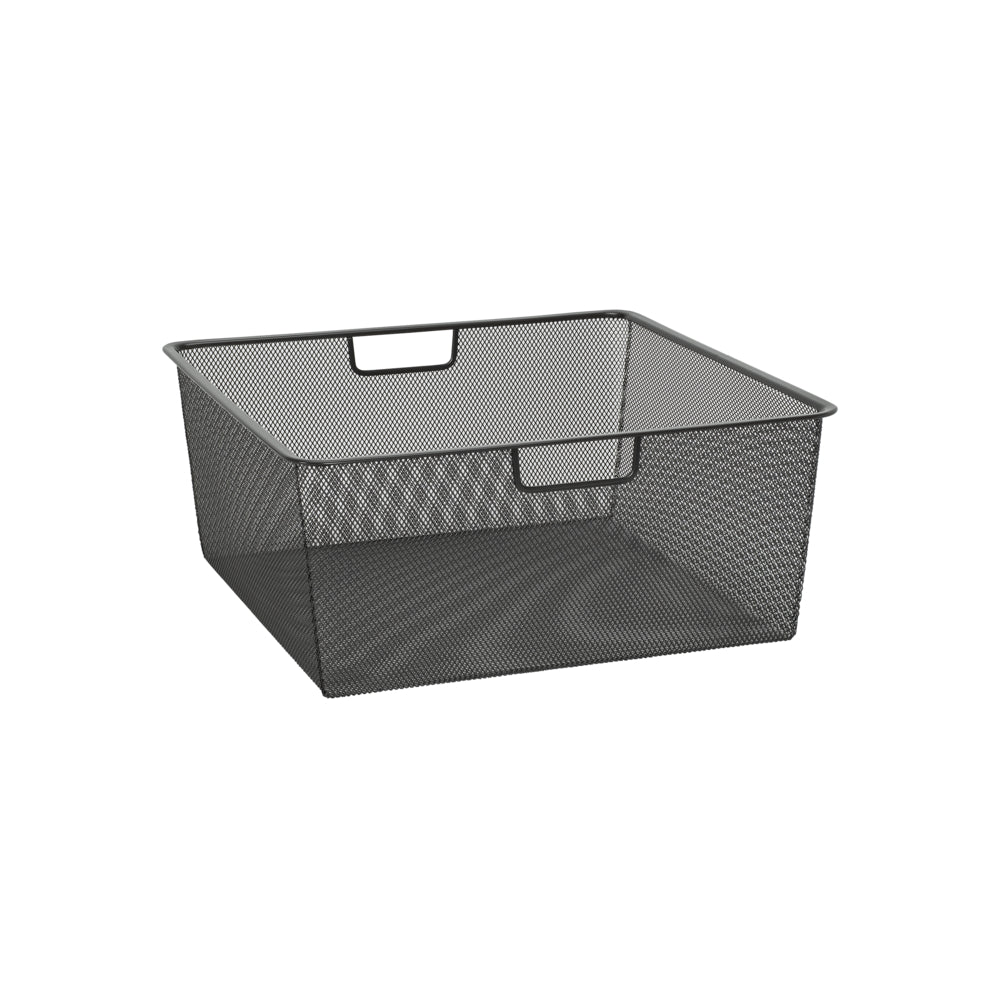

Select Mesh Drawer for Each Frame:
1 Runner : 45 X 45 X H 8cm
2 Runner: 45 x 45 x H18cm
3 Runner: 45 x 45 x H28cm
The gliding drawer frame easily clicks into place between two bracket click-in in corresponding depth, with no tools needed. Supplement with either mesh- or wire drawer for gliding frame in corresponding width/depth.
The gliding drawer frame is available in different combinations regarding width and depth and has integrated wheels and built-in stops.
When planning in Elfa Planner, the design tool will automatically add the right gliding drawer frame when choosing a gliding mesh- or wire drawer.
Multiple gliding drawer frames can be placed next to eachother, sharing the same bracket, but can not be placed next to products that require 1 slot (such as angled shelf, storing board etc.).
Also, leave sufficient space in front of a solution containing gliding functions. A D:40 gliding function requires 290 mm additional free space in front of it, in order to be able to extend fully. Total solution depth for a click-in system with fully extended gliding functions D:40 is 740 mm fron the back wall.
