Elfa
Storage Track- W60-Matt Grey
Storage Track- W60-Matt Grey
Regular price
€17.20 EUR
Regular price
€0.00 EUR
Sale price
€17.20 EUR
Unit price
/
per
Taxes included.
Couldn't load pickup availability

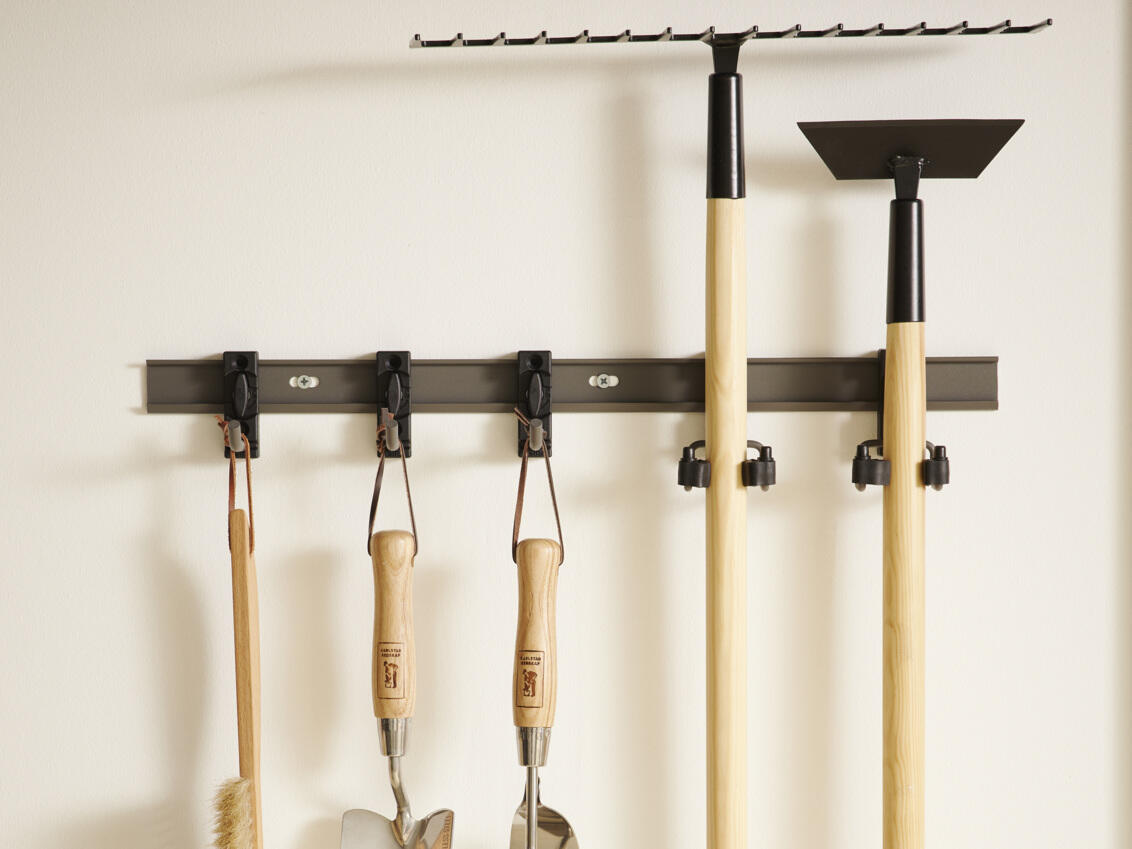

Simplify tool organization with Garage+ storage track. Mount between standards or directly on the wall. Complete with heavy-duty hooks for versatile storage. Choose from a variety of accessories like J-hooks, mesh baskets and bike hooks. Reinforce with an extra screw for loads above 10 kilos.
- Complete with Garage+ heavy-duty hooks for organized storage.
- Mount between standards or directly on the wall.
- Reinforce with an extra screw for heavier loads.
-
Article number4200120ColorMatte greyWidth (mm)574Depth (mm)8Consumer.Height36
Technical description

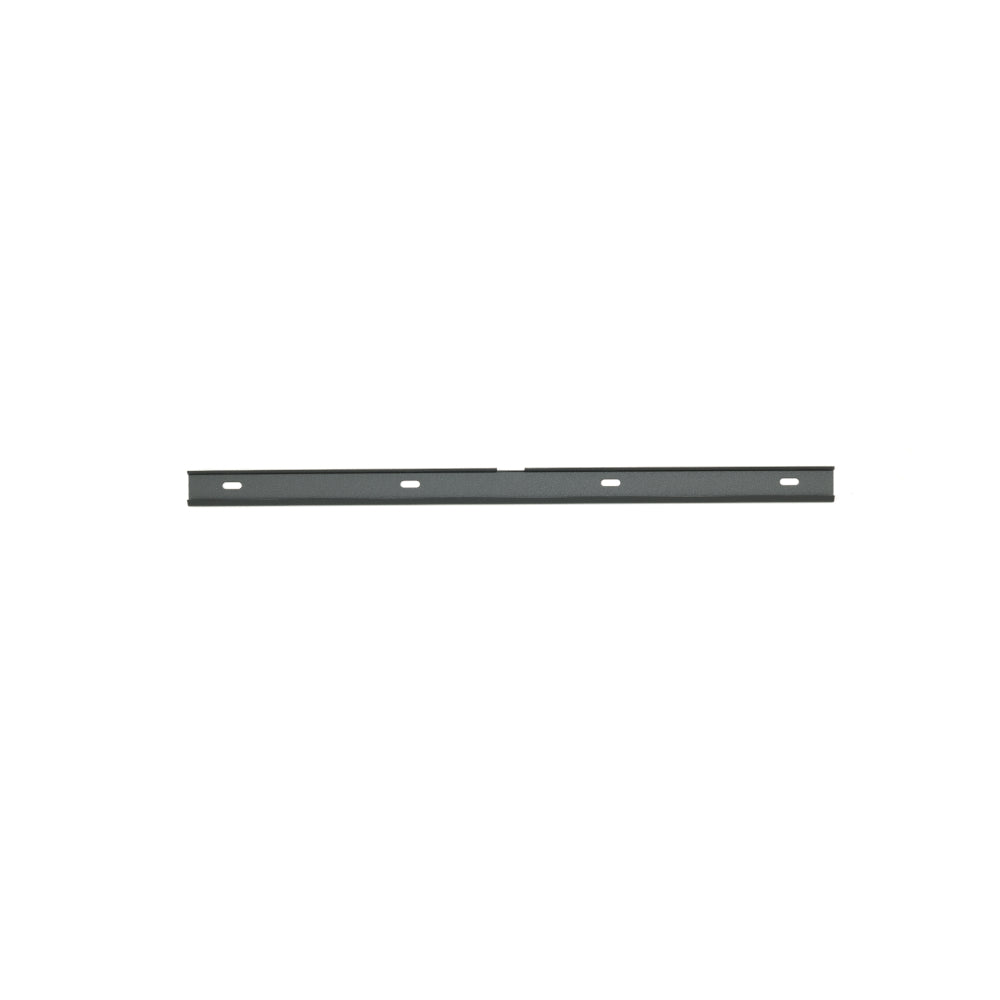

Track for hooks and holders, based on the top track design. Can be mounted between two hang standards using track in hang standard adapter. Can also be mounted directly onto the wall.
Can hold track hooks, track holders, mesh storage bag and track mesh basket.
When mounting a W: 60 storage track between 2 hang standards - use 4700128 Track standard fittings
* Load <10kgs = no need to secure with screw
* Load >10kgs = make additional attachment towards the wall with minimum 1 screw (and plug if plaster wall) positioned in one of the middle bore holes.
There are 4 oval bore holes in the storage track - width 20 mm (6/8”) and height 7,2 mm (2/8”) for easier positioning towards studs etc.
Colour:
Matte Grey (polyester colour) NCS S 7500-N, fine texture, gloss 5
Can hold track hooks, track holders, mesh storage bag and track mesh basket.
When mounting a W: 60 storage track between 2 hang standards - use 4700128 Track standard fittings
* Load <10kgs = no need to secure with screw
* Load >10kgs = make additional attachment towards the wall with minimum 1 screw (and plug if plaster wall) positioned in one of the middle bore holes.
There are 4 oval bore holes in the storage track - width 20 mm (6/8”) and height 7,2 mm (2/8”) for easier positioning towards studs etc.
Colour:
Matte Grey (polyester colour) NCS S 7500-N, fine texture, gloss 5
Planning rules
When planning in Elfa Planner, the design tool will guide you where a storage track can be placed.
The storage track can either be planned between two hang standards in a section with corresponding width or be fastened directly to the wall.
The storage track fittings use one slot in the respective hang standards it mounts in between and can not be placed next to a bracket click-in. Storage tracks can be planned next to eachother, sharing the same hang standard pair of slots.
Take into account what equipment you intend to store in the storage track, in order to determine which space you need to leave free for, for example, a shelf to be mounted underneath.
The storage track can either be planned between two hang standards in a section with corresponding width or be fastened directly to the wall.
The storage track fittings use one slot in the respective hang standards it mounts in between and can not be placed next to a bracket click-in. Storage tracks can be planned next to eachother, sharing the same hang standard pair of slots.
Take into account what equipment you intend to store in the storage track, in order to determine which space you need to leave free for, for example, a shelf to be mounted underneath.
